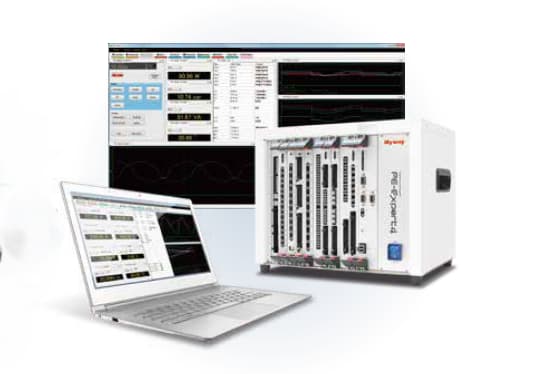

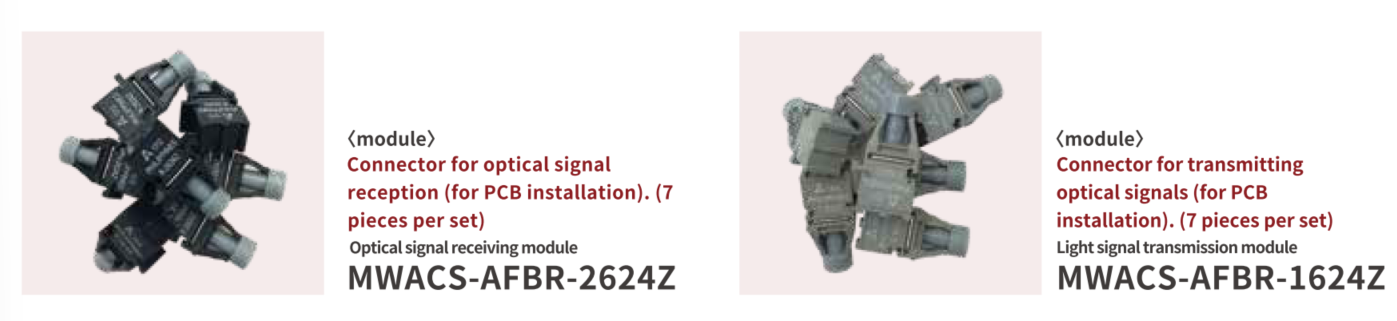

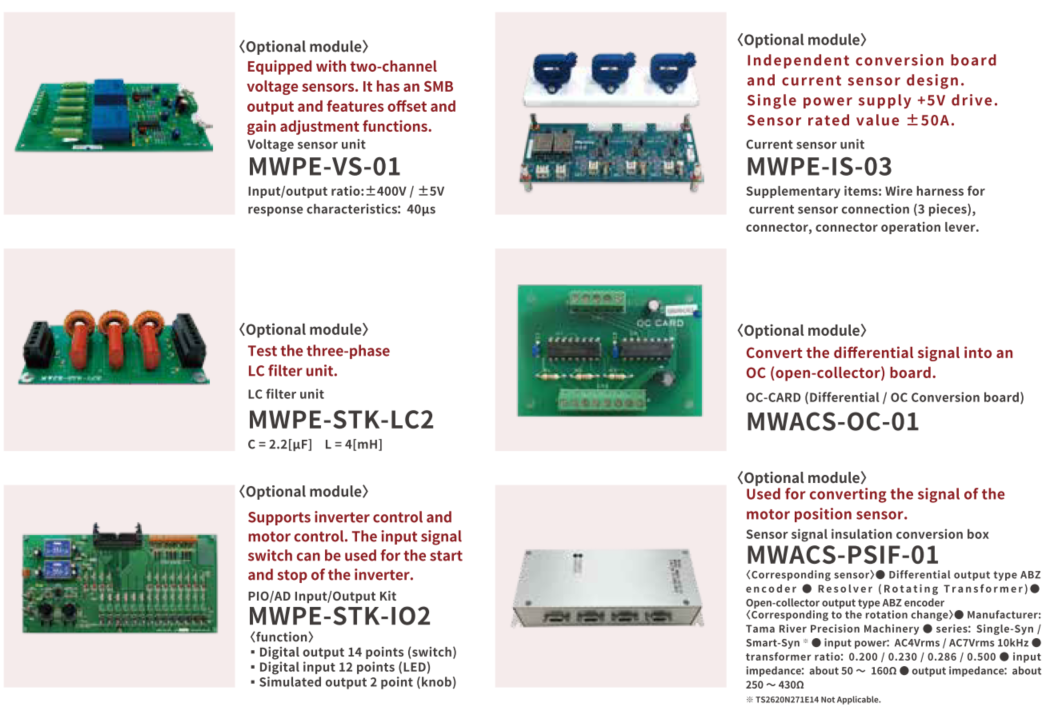

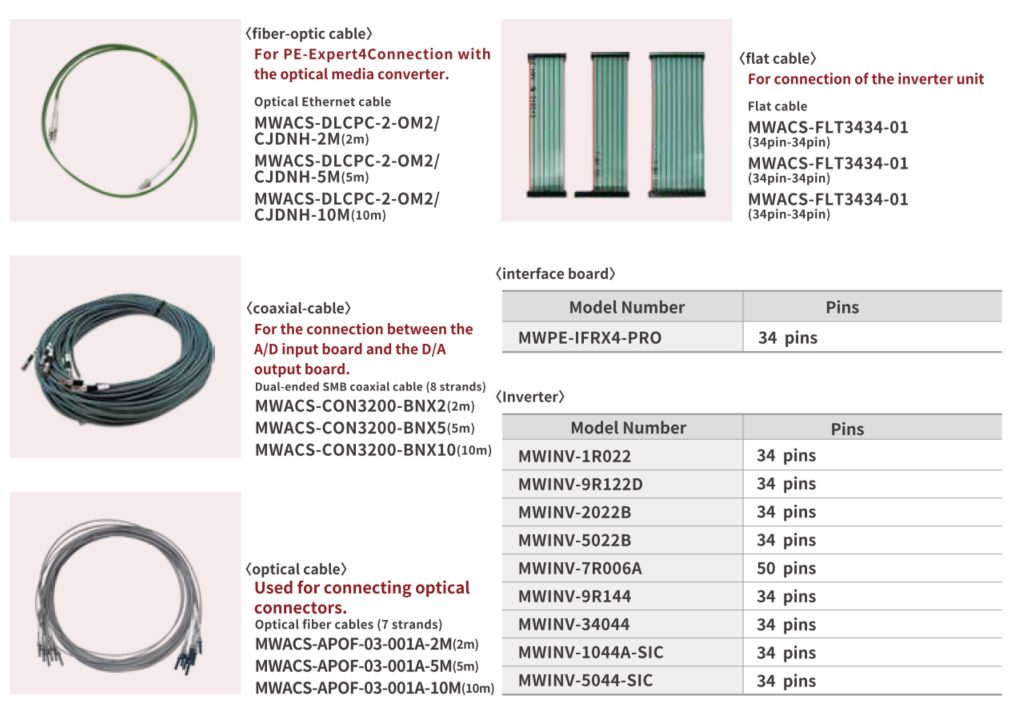

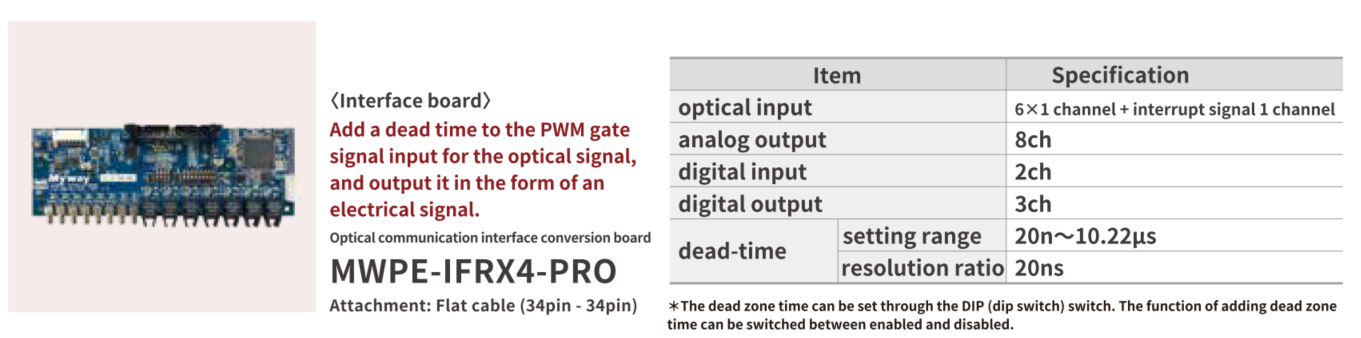

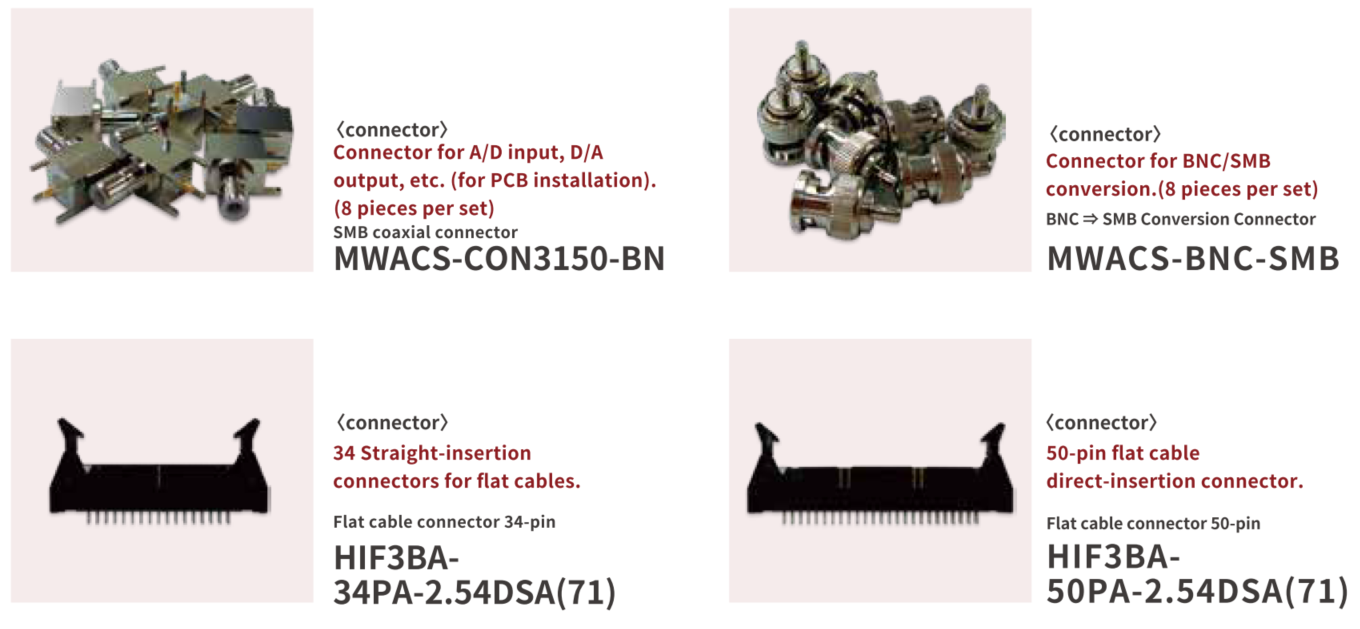

• Various optional expansion boards are available, enabling flexible expansion of external I/O interfaces through a unique bus communication method.

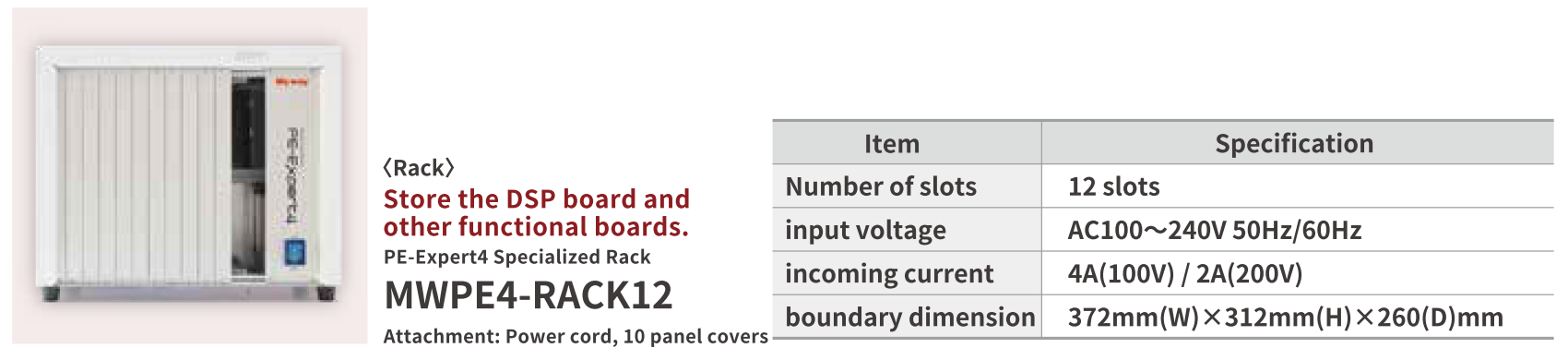

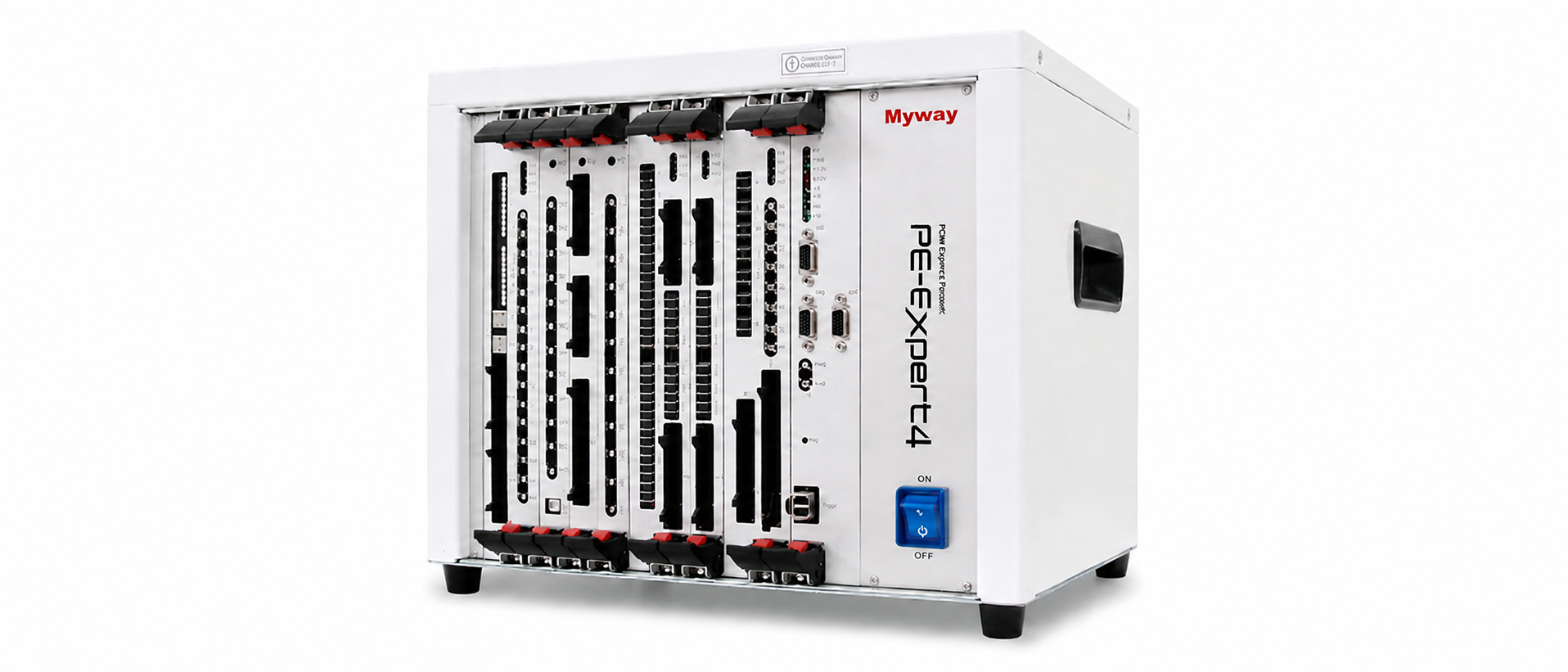

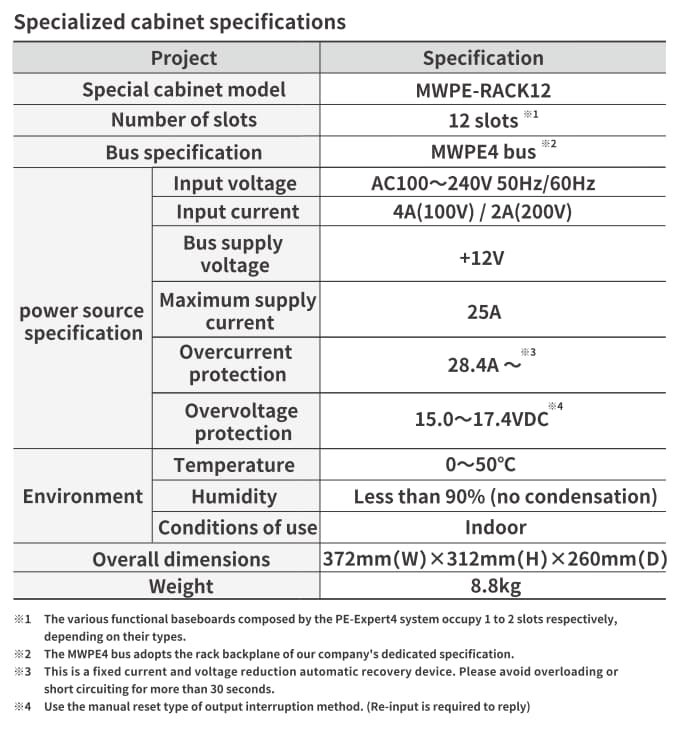

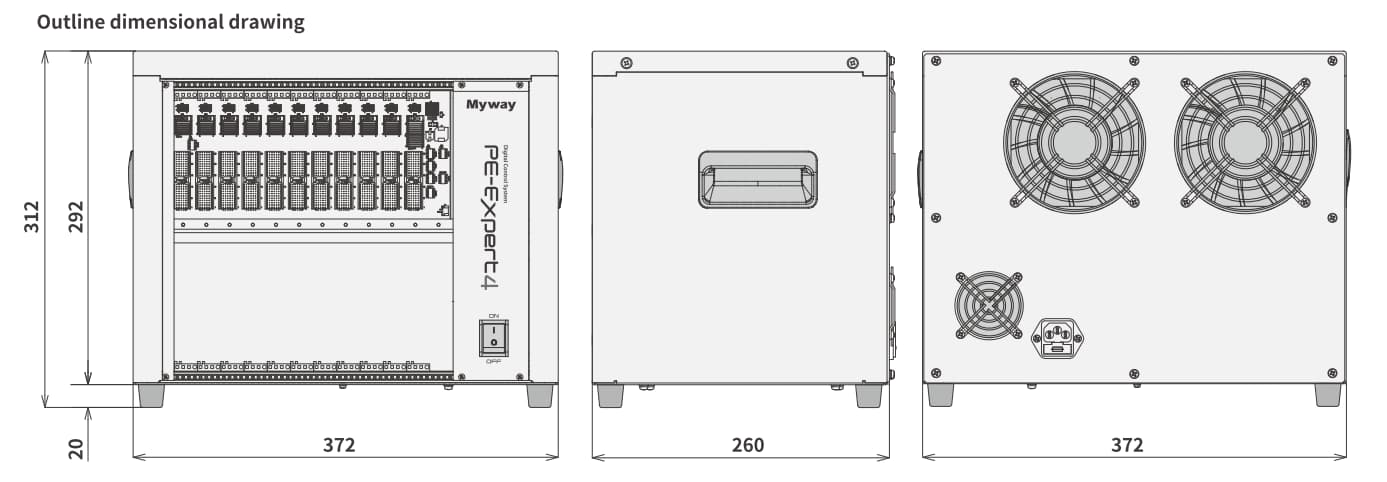

• In the PE-Expert4 dedicated rack, the remaining 10 slots, excluding the DSP board slot, can be freely expanded.

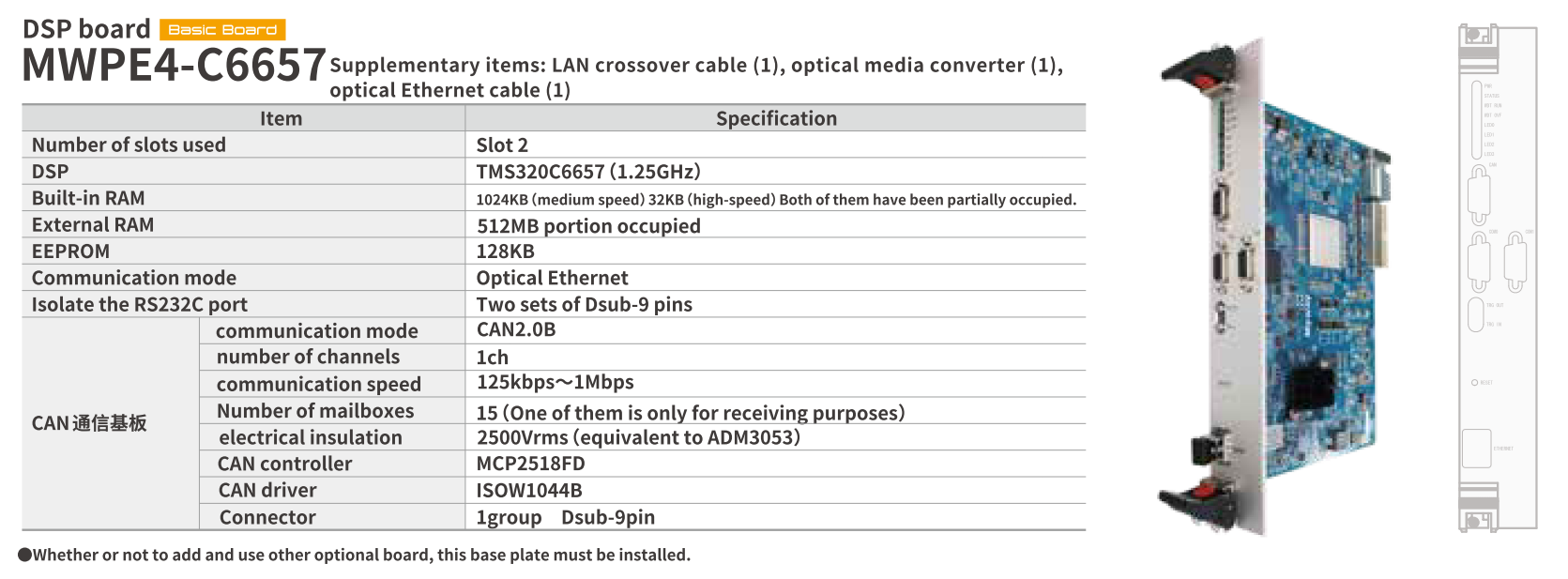

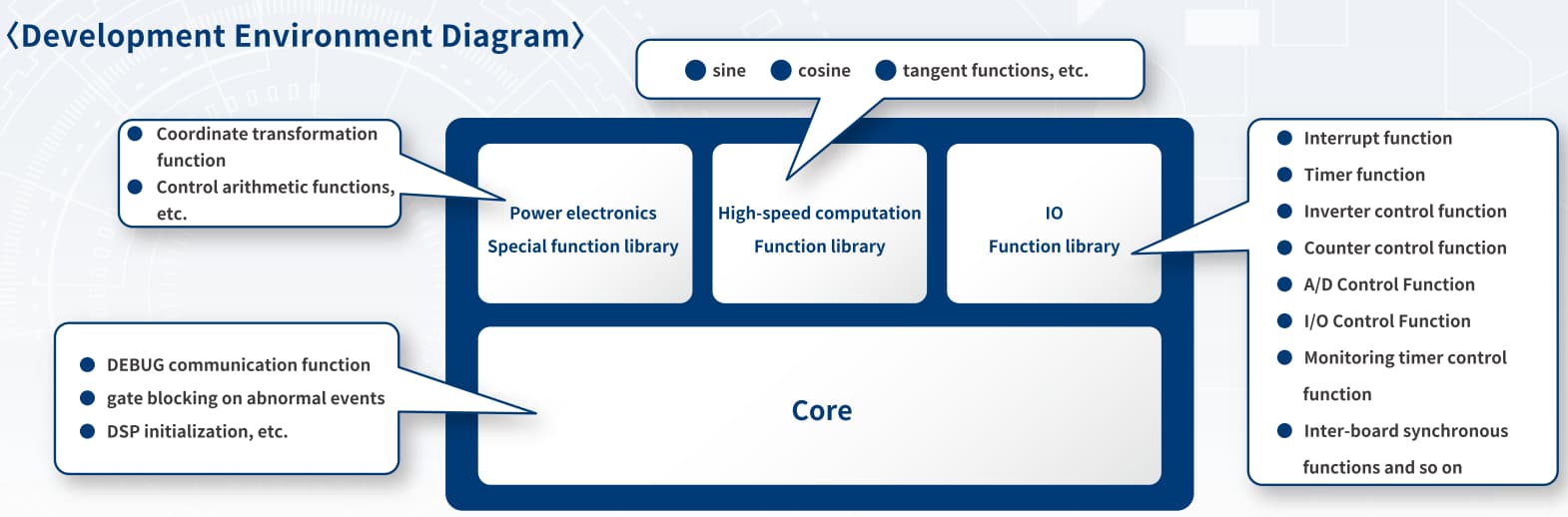

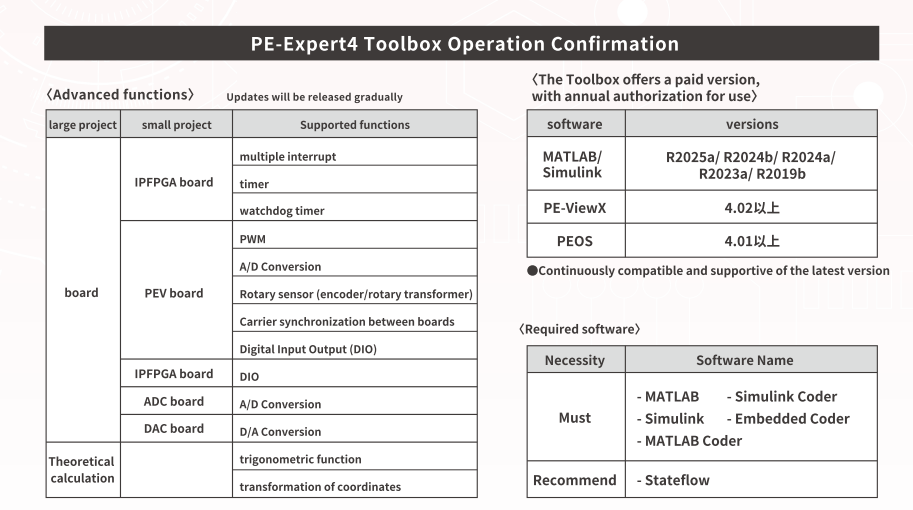

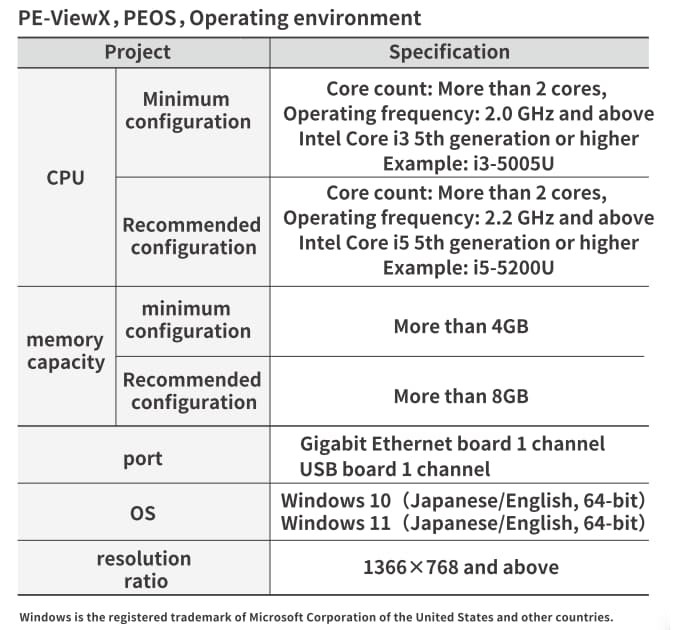

The DSP board is the core board of the PE-Expert4 system. It is equipped with a high-speed floating-point DSP, responsible for computing and processing. It communicates electrically with the PC and controls the I/O of other expansion boards. It must be installed in the designated position of the dedicated rack.

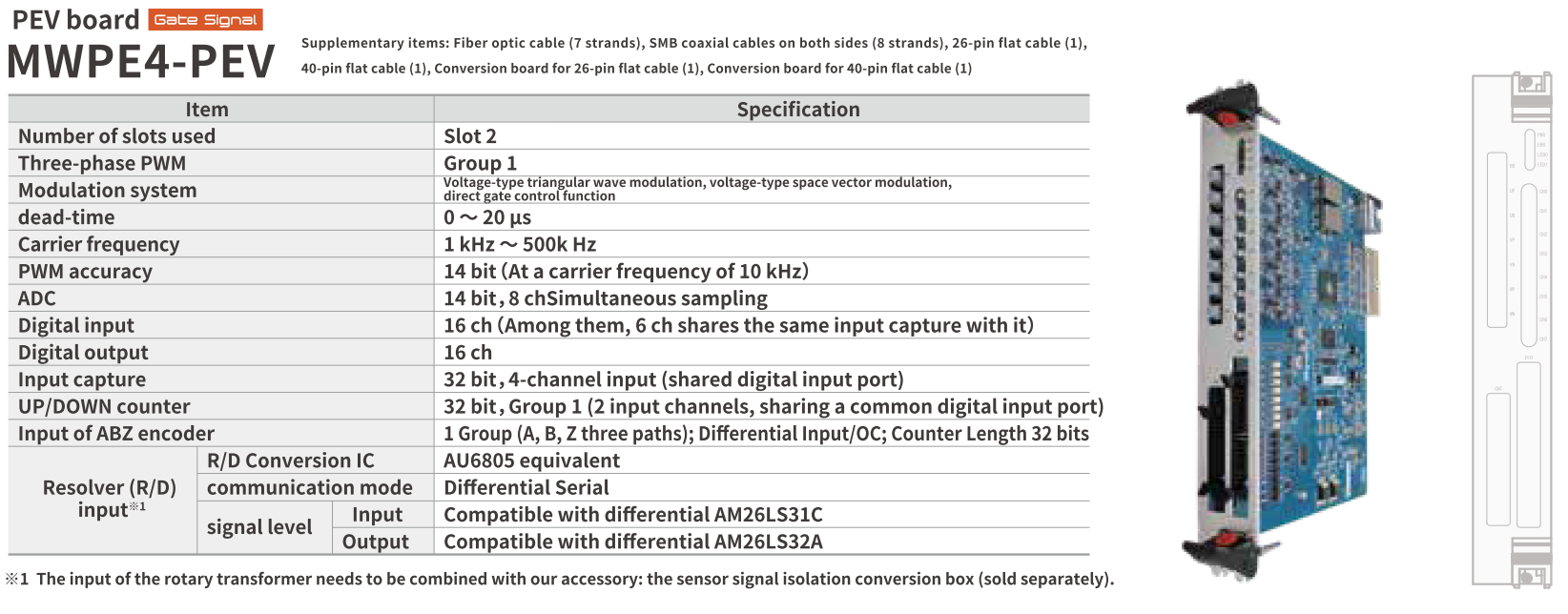

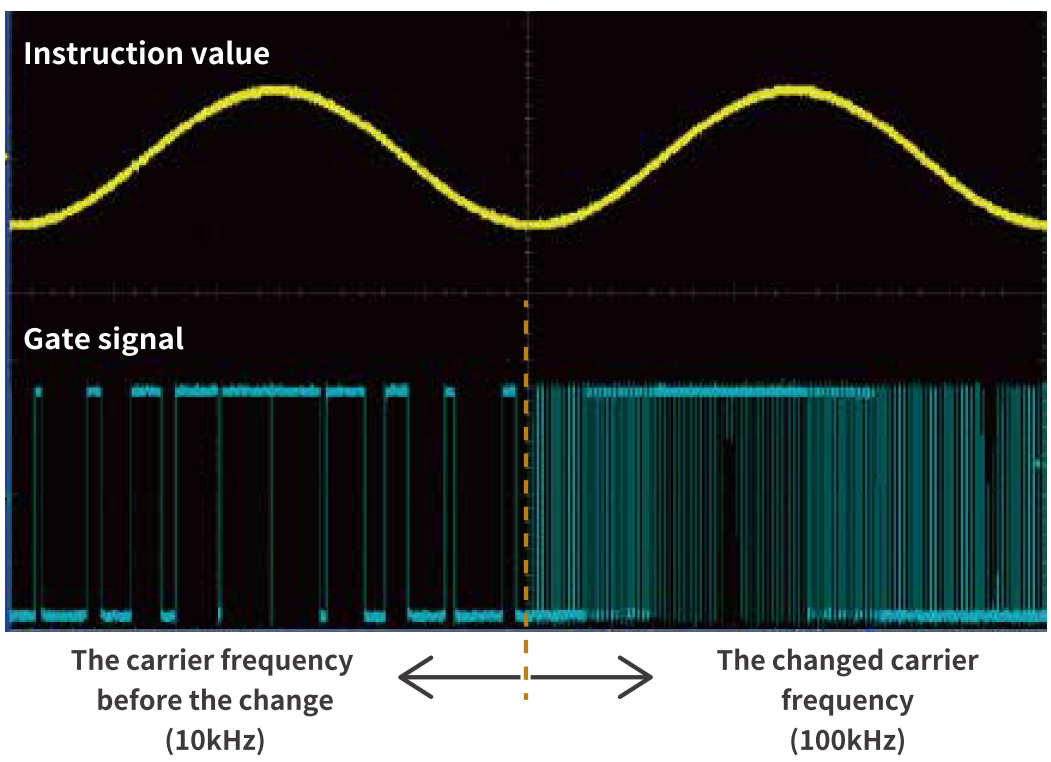

Supports high-frequency PWM generation up to 500 kHz. By adopting a design that minimizes pulse delay, optimized for high-speed SiC inverter applications.

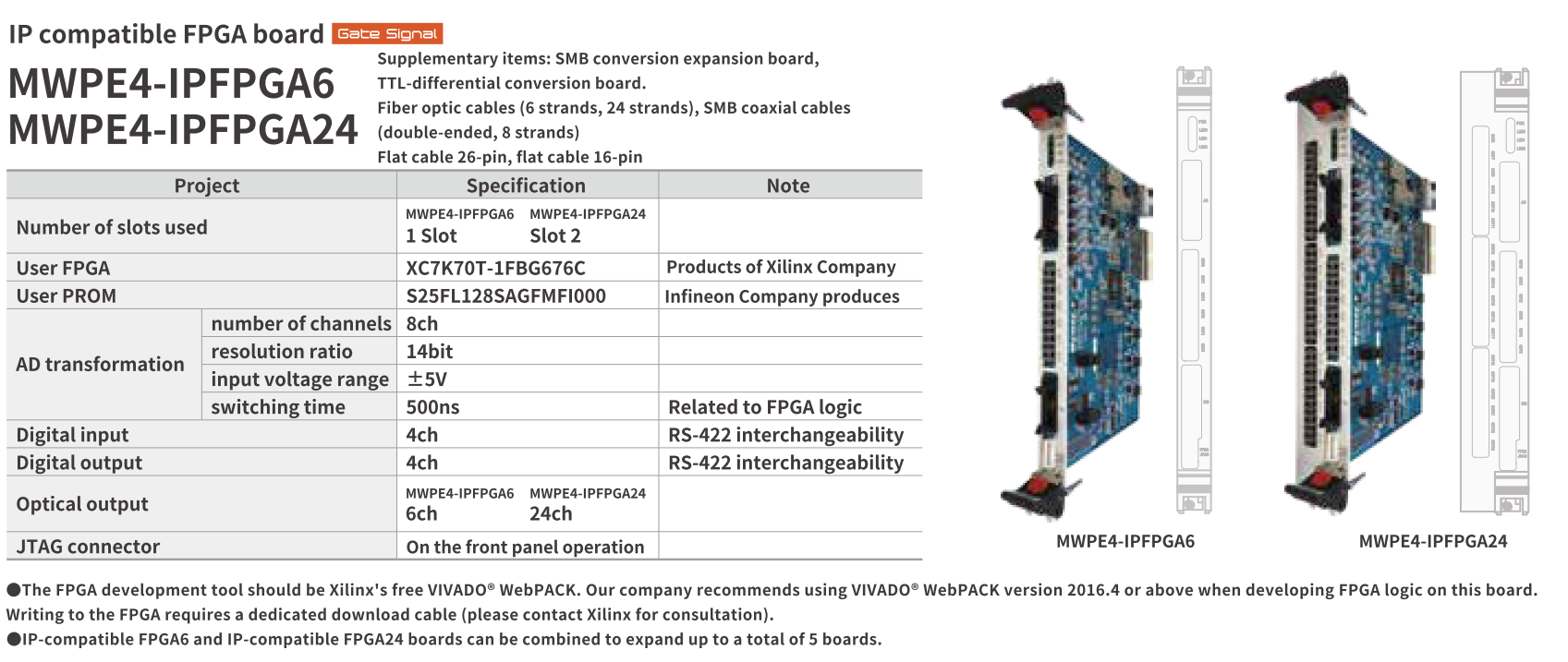

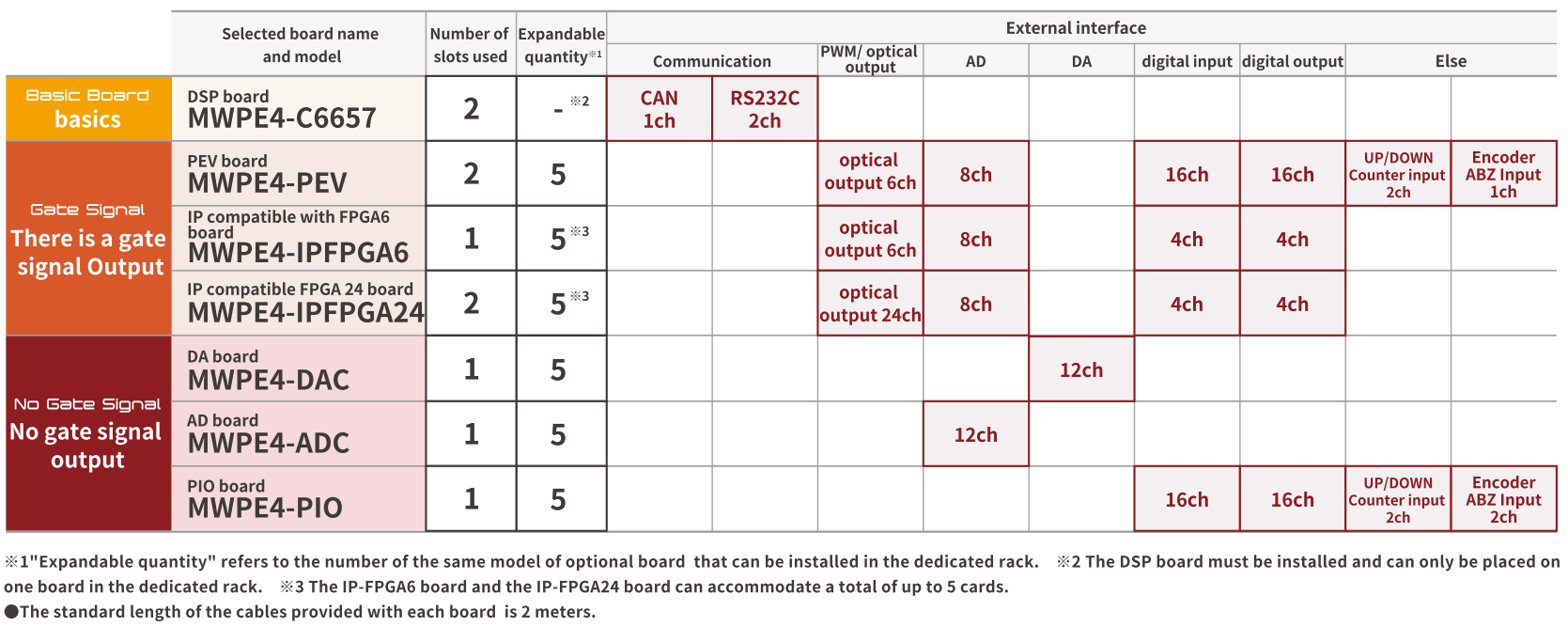

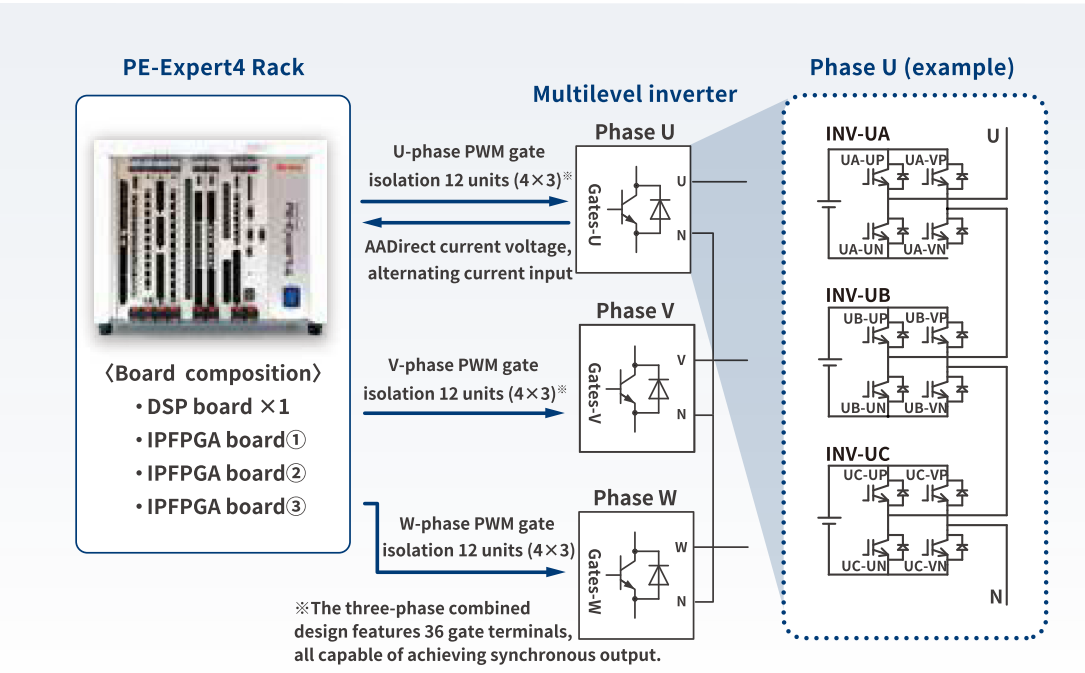

FPGA-based board with three-phase gate signal outputs (6 channels / 24 channels). Compared with previous FPGA boards, this one adopts the latest generation FPGA (Xilinx's Kintex-7® Speed Grade 1). By integrating the IP (Intellectual Property) specially provided by Myway Plus, the logic development of FPGA can be significantly simplified.

FPGA-based board with three-phase gate signal outputs (6 channels / 24 channels). Compared with previous FPGA boards, this one adopts the latest generation FPGA (Xilinx's Kintex-7® Speed Grade 1). By integrating the IP (Intellectual Property) specially provided by Myway Plus, the logic development of FPGA can be significantly simplified.

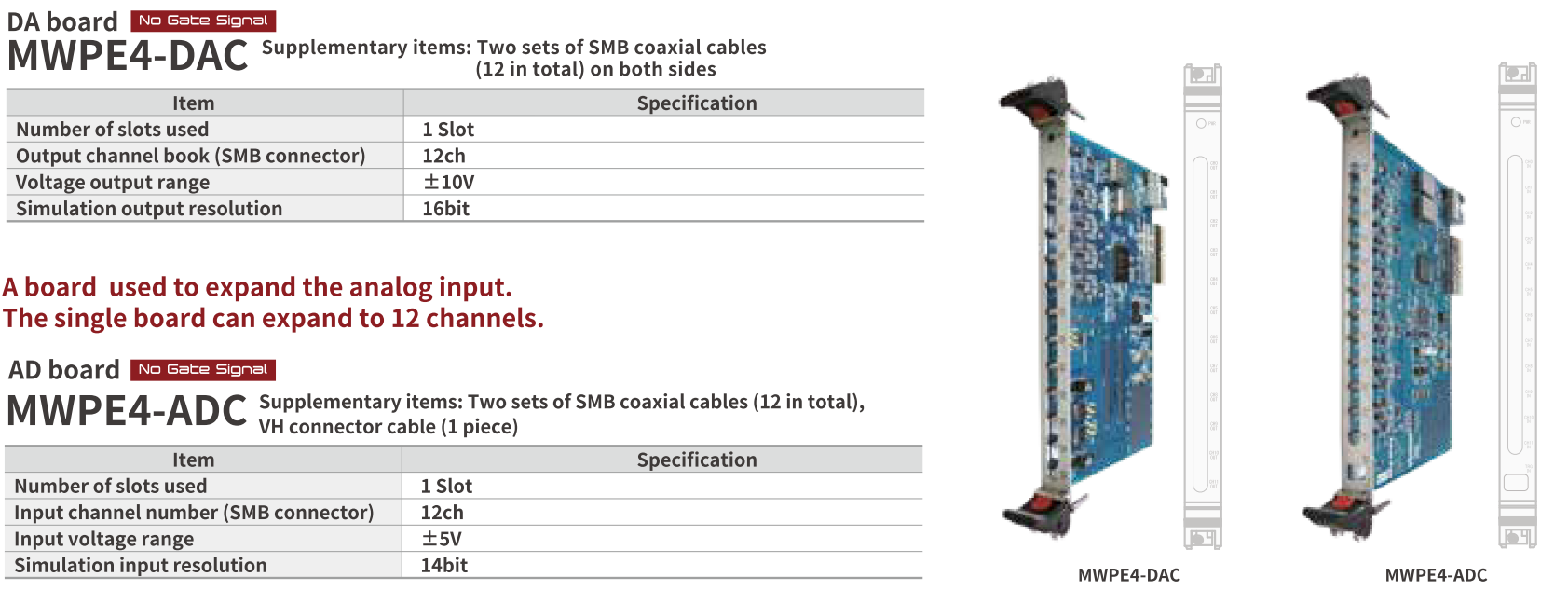

A board used to expand the analog input. The single board can expand to 12 channels.

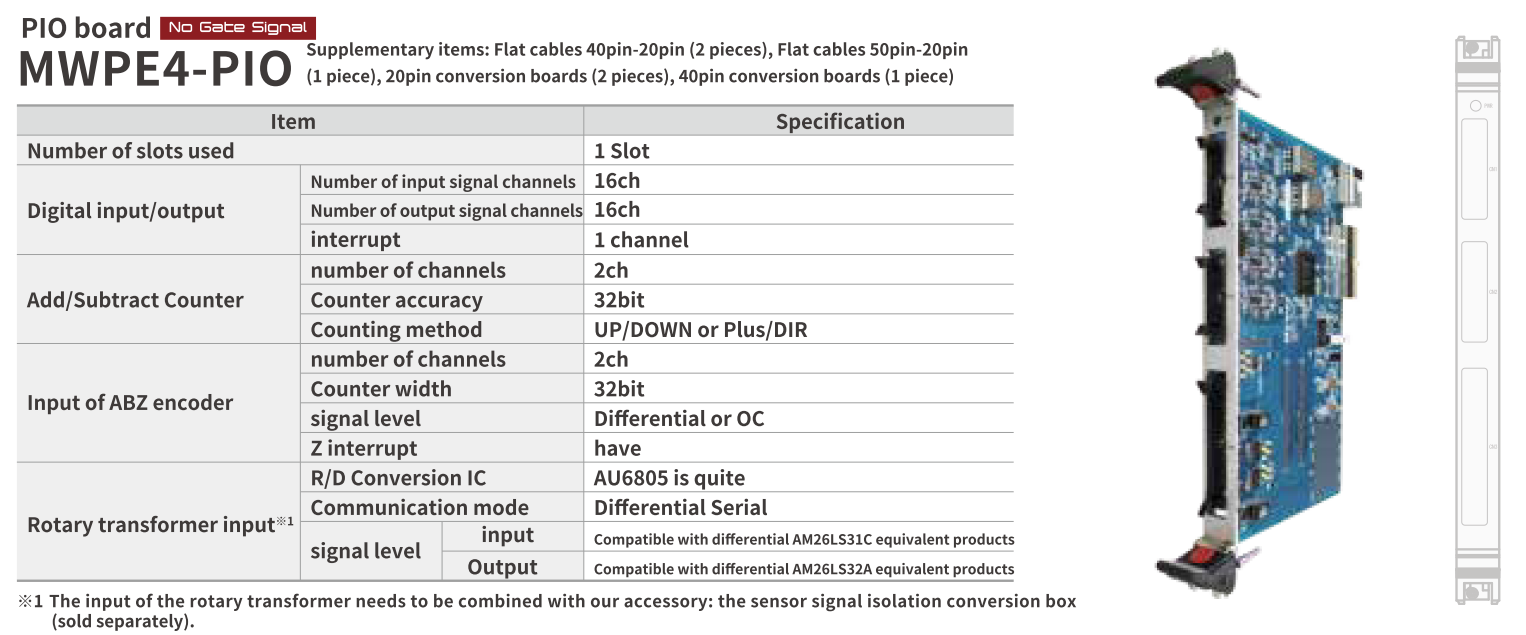

This board expands digital I/O and counter functionality. the digital input/output and counter functions. One board can provide 16 channels of digital input/output and can also expand with 2 channels of counter functionality.
